MB SD Connect Compact 4 Mercedes Star Diagnosis Tool with EVG7 Diagnostic scanne

MB SD Connect Compact Diagnosis Tool With WiFi  Plus EVG7 Diagnostic Controller
  • MB SD Connect Compact Diagnosis Tool With WiFi  Plus EVG7 Diagnostic Controller
  • MB SD Connect Compact Diagnosis Tool With WiFi  Plus EVG7 Diagnostic Controller
  • MB SD Connect Compact Diagnosis Tool With WiFi  Plus EVG7 Diagnostic Controller
  • MB SD Connect Compact Diagnosis Tool With WiFi  Plus EVG7 Diagnostic Controller
  • MB SD Connect Compact Diagnosis Tool With WiFi  Plus EVG7 Diagnostic Controller
  • MB SD Connect Compact Diagnosis Tool With WiFi  Plus EVG7 Diagnostic Controller
  • MB SD Connect Compact Diagnosis Tool With WiFi  Plus EVG7 Diagnostic Controller
  • MB SD Connect Compact Diagnosis Tool With WiFi  Plus EVG7 Diagnostic Controller
  • MB SD Connect Compact Diagnosis Tool With WiFi  Plus EVG7 Diagnostic Controller
  • MB SD Connect Compact Diagnosis Tool With WiFi  Plus EVG7 Diagnostic Controller
  • MB SD Connect Compact Diagnosis Tool With WiFi  Plus EVG7 Diagnostic Controller
Model No.︰MB SD Connect
Brand Name︰MB SD Connect Compact Diagnosis Tool
Country of Origin︰China
Unit Price︰-
Minimum Order︰1 pc
Share on:

 Total 54 Related Items
Prev12345Next

Product Description

MB SD Connect Compact 5 Star Diagnosis Tool With WiFi V2018.05 Plus EVG7 Diagnostic Controller Tablet PC


EVG7 DL46/HDD500GB/DDR2GB Diagnostic Controller Tablet PC Plus MB SD Connect Compact C5
This package comes with EVG7 DL46 Tablet PC and MB SD C5, we can install software for you before shipping, thus you can use it directly once you received the parcel, easy and convenient.

Software Version:2018.05, WIN7 System. Hardware Verison:  OS:2.3   CSD:2.11

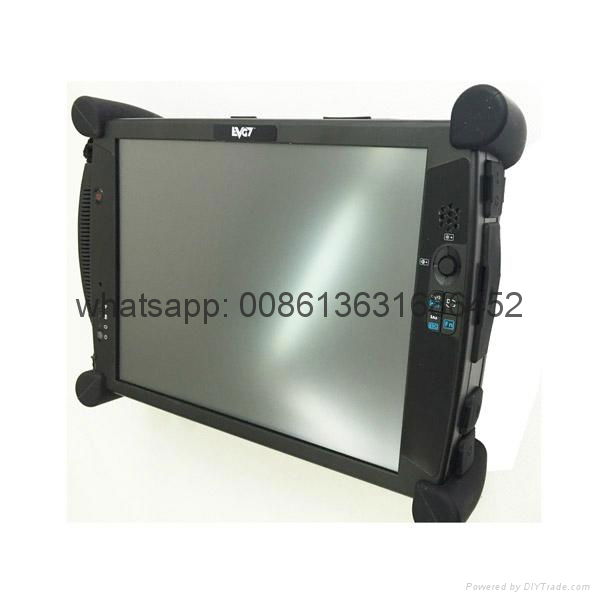

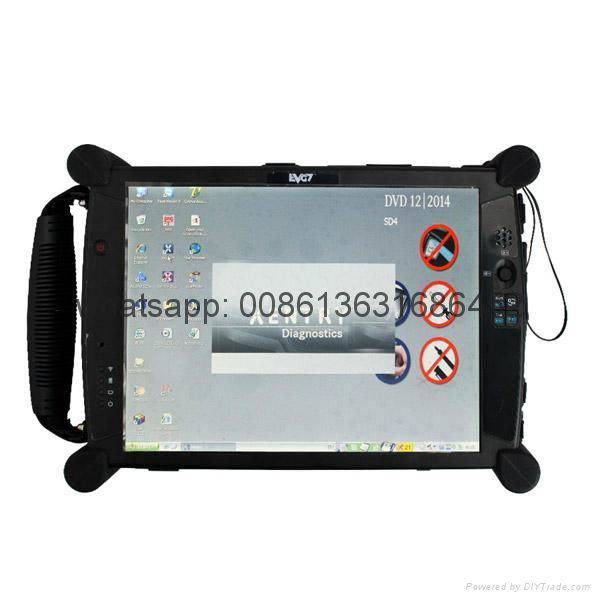

EVG7 DL46 Specification:
Mark : EVG7
Model : DL46
OS : Win XP/7/8
Processor : Intel Celeron 1037(Dual - 1.8Ghz/L3 2M)
DDR : The biggest support memory : 2GB
HDD : 500 GB SATA HDD. (Can support more than 1 TB capacity )
LCD : 10.4 Inch The resolution of the 1024x768
Graphics :
touchscreen widescreen LED backlight
The core graphics Intel HD Graphics
Speakers : Built-in Speakers
Wireless : 802.11b/g/n
LAN : The built-in 10-100M card
Bluetooth : BT2.0 , 4.0
USB : USB3.0 / Mini USB / 2 x USB2.0
Card Reader : TF Card Reader
Other Interface :
VGA Voice Input / The Sound Output /
DC Power Jack / Parallel LPT Port I/O
VGA Output
Battery Type : 9 The core of lithium batteries 10.08V 6600 mAh
Power Adapter : 110V-240V The adaptive communication power supply
Battery Life : The specific time depending on the use environment
Specifications : 270x180x60 mm
weight : 1911g (with battery)
Certificates : CE / FCC /  RoHS

New MB Compact C5 Features
1. New MB SD Connect Compact C5 Star Diagnosis support wireless diagnose;
2. New MB SD Connect Compact C5 Star Diagnosis not only support K line diagnose and CAN BUS,but also UDS diagnose protocol. Because old MB STAR C4 main board do not have UDS chip, so old MB STAR C4 can not support it;
3. Multiplexer now use Lan cable to connect
4. Connector adopt Military quick swap technology, it can support 10,000 times pull plug, more stable;
5. All core accosseries adopt original new packing chip, and 24hours test, guarantee the quality of the products;
6.Support Wireless
7.Supported Multi-Language: English/Bulgarian/Danish/Greek/Spanish/French/Italian/Korean/Polish/Romanuan/Serbo-Croatian/ Turkish/Czech/German/Finish/Hyngarian/Japanese/Dutch/Portuguese/Russian/Swedish/Chinese
8. Support Mercedes Benz Cars After Year 2000
9. Support Offline and Online Programming, If You Want to Do Online, Please Buy This Online SCN Coding Service

MB SD Connect Compact C5 Supported Vehicle List:
MB SD C4 Support Mercedes Benz Cars After Year 2000
Passenger Car Support List:
A(176),  A(169),  A(168),  B(246),  B(245),  CLC(117),  C(204)  C(203),  C(202),  190(201),  E(212),  E(211),  E(210),  124(124),  S(222),  S(221),  S(220),  S(140),  S(126),  E(207),  CLK(209),  CLK(208),  CLS(218),  CLS(219),  CL(216),  CL(215),  CL(140)  SLK(172),  SLK(171),  SLK(170),  SL(231),  SL(230),  SL(129),  SL(107),  SLS(197),  M(166),  M(164),  M(163),  G(463),  G(461),  E(212),  E(211),  E(210),  124(124),  S(222),  S(221),S(220),  S(140),  CLK(209),  CLK(208),  CLS(218),  CLS(219),  CL(216),  CL(215),  CL(140),  SLK(172),  SL(231),  SL(230),  SL(129),  SL(107),SLS(197),  M(166),  M(164),  M(163),  G(460),  GL(164),  GLK(204),  R(251)

Van Support List:
MB 100(631),  T1,  SprinterIII,  SprinterII,  SprinterI,  Sprinter900,  Citan,  Vito(639),  Vito(638), V(638),   Viano(639),  T2,  Vario,  Vaneo(414)

Truck Support List:
Actros963/4,  Actros2,3,  AtegoIII,  AtegoII,  AxorII,  Eonic,  Zetros,  Actros,  Atego Light,  Atego Heavey,  HPN M96,  Atron,  HPN M2000,  SKL,  FSK,  Further model series

Unimog Support List:
U20,  UGN,  UHN

Bus Support List:
TRAVEGO,  INTOURO,  INTEGRO,  CITARO,  CAPACITY,  CITO,  TOURISMO,  O350/O403, CONECTO,  O404,  O405-O408,  Minibus,  OC500,  TOURO,  TOURINO,  MBC,  MULITEGO,  O500,  O500/OH,  OH,  OH368,  OF,  OF384,  LO,  O400,  FURTHER MODEL SERIES

Super Sports Car Support List:
SLR(199)

MB SD C5 Package List:
1pc x C5 Multiplexer (new C5 case)
1pc x OBDII 16PIN Cable
1pc x 38PIN Cable
1pc x 14PIN Cable
1pc x 8PIN Cable
1pc x Lan Cable

EVG7 Tablet pc :
1pc x EVG7 DL46
1pc x Li-Ion Battery
1pc x Power Adapter
1pc x User's Manual
1pc x USB memory card for drivers

Payment Terms︰T/T, Western Union, MoneyGram
Standards Certificate︰CE FCC
Product Image

MB SD Connect Compact Diagnosis Tool With WiFi  Plus EVG7 Diagnostic Controller
MB SD Connect Compact Diagnosis Tool With WiFi Plus EVG7 Diagnostic Controller

MB SD Connect Compact Diagnosis Tool With WiFi  Plus EVG7 Diagnostic Controller
MB SD Connect Compact Diagnosis Tool With WiFi Plus EVG7 Diagnostic Controller

MB SD Connect Compact Diagnosis Tool With WiFi  Plus EVG7 Diagnostic Controller
MB SD Connect Compact Diagnosis Tool With WiFi Plus EVG7 Diagnostic Controller

MB SD Connect Compact Diagnosis Tool With WiFi  Plus EVG7 Diagnostic Controller
MB SD Connect Compact Diagnosis Tool With WiFi Plus EVG7 Diagnostic Controller

MB SD Connect Compact Diagnosis Tool With WiFi  Plus EVG7 Diagnostic Controller
MB SD Connect Compact Diagnosis Tool With WiFi Plus EVG7 Diagnostic Controller

MB SD Connect Compact Diagnosis Tool With WiFi  Plus EVG7 Diagnostic Controller
MB SD Connect Compact Diagnosis Tool With WiFi Plus EVG7 Diagnostic Controller

MB SD Connect Compact Diagnosis Tool With WiFi  Plus EVG7 Diagnostic Controller
MB SD Connect Compact Diagnosis Tool With WiFi Plus EVG7 Diagnostic Controller

MB SD Connect Compact Diagnosis Tool With WiFi  Plus EVG7 Diagnostic Controller
MB SD Connect Compact Diagnosis Tool With WiFi Plus EVG7 Diagnostic Controller

MB SD Connect Compact Diagnosis Tool With WiFi  Plus EVG7 Diagnostic Controller
MB SD Connect Compact Diagnosis Tool With WiFi Plus EVG7 Diagnostic Controller

MB SD Connect Compact Diagnosis Tool With WiFi  Plus EVG7 Diagnostic Controller
MB SD Connect Compact Diagnosis Tool With WiFi Plus EVG7 Diagnostic Controller

MB SD Connect Compact Diagnosis Tool With WiFi  Plus EVG7 Diagnostic Controller
MB SD Connect Compact Diagnosis Tool With WiFi Plus EVG7 Diagnostic Controller
